ATP FOAM PROPORTIONING SYSTEMS

Class A and B Devices

The FOAMATE Around-the-Pump (ATP) Foam Systems are a simple and very cost
effective means to add Class A or Class B foam capabilities to any apparatus.

FOAMATE 1.0 • Class A Foam Proportioner

Trident’s FOAMATE 1.0 is an around-the-pump foam proportioning system that is easy to install and operate, providing Class A foam capabilities to any fire apparatus. A venturi device type system that educts foam concentrate from either the on-board foam tank or external sources, sending foam solution to all discharge outlets simultaneously. The FOAMATE 1.0 system can provide proportioning at .25%, .50%, or 1% injection rates. It is available with GPM or LPM calibrations.

TECHNICAL MANUAL

GPM Calibration

LPM Calibration

FOAMATE 2.1 • Class B Foam Proportioner

Trident’s FOAMATE 2.1 is an around-the-pump foam proportioning system that is easy to install and operate, providing Class B foam capabilities to any fire apparatus. A venturi device type system that educts foam concentrate from either the on-board foam tank or external sources, sending foam solution to all discharge outlets simultaneously. The FOAMATE 2.1 system can provide proportioning at 1%, 3%, or 6% injection rates. It is available with GPM or LPM calibrations.

TECHNICAL MANUAL

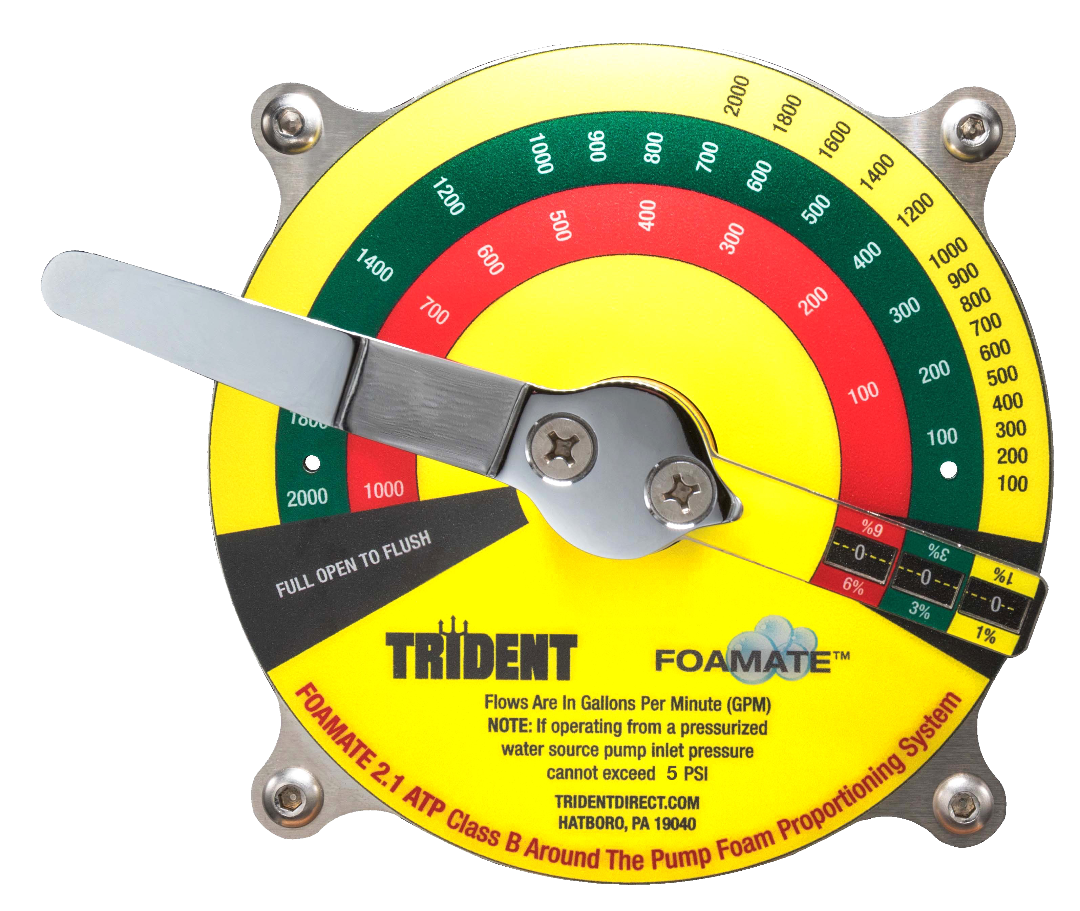

GPM Calibration

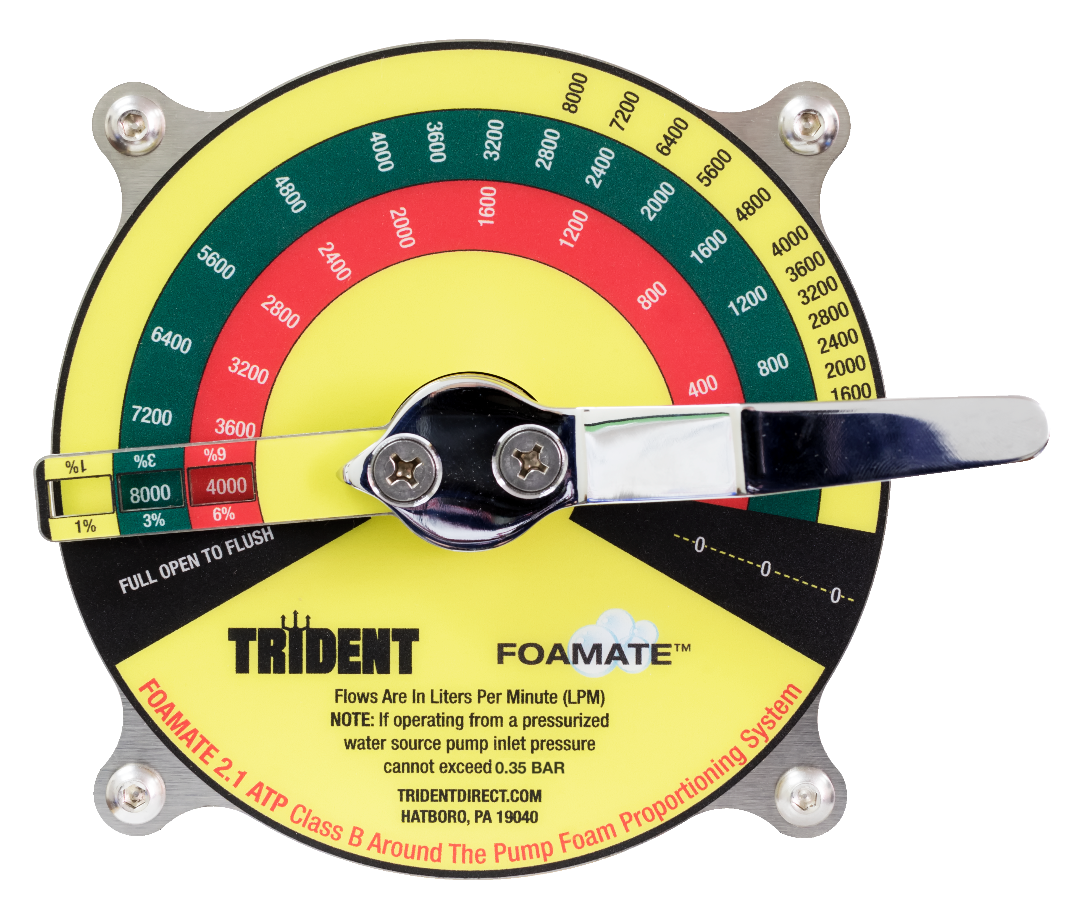

LPM Calibration
